Exit Button

by ONETAK
Sold out
$12.80
  • Description
  • Shipping
  • Payment
  • Other
  • Pattern Name:Infrared

    Features:

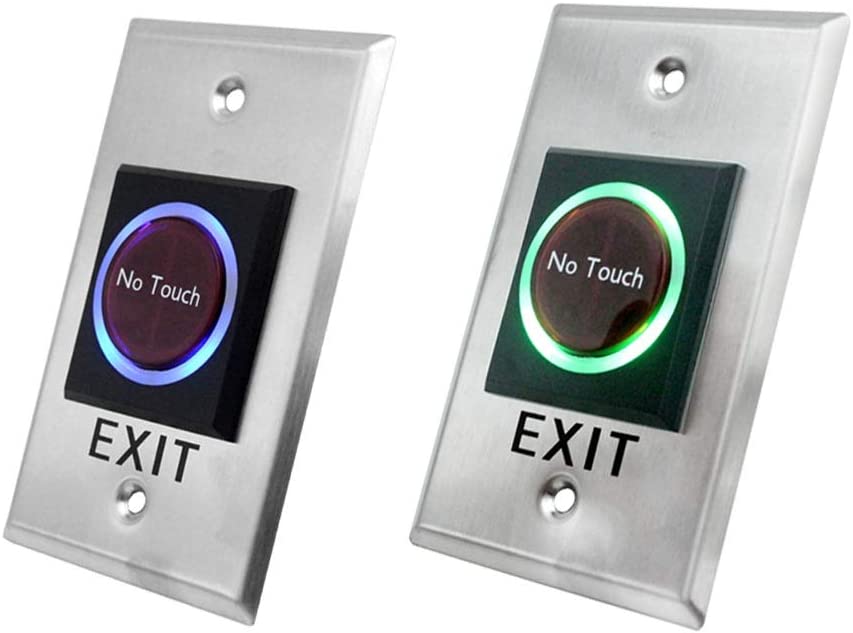

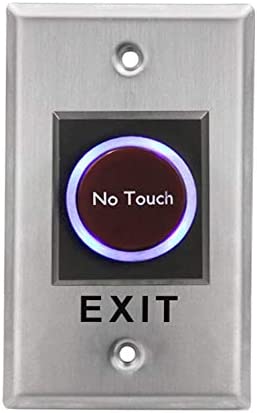

    This DC 12-24V touch exit release button switch offers a reliable design for your access control system.

    Specifications:

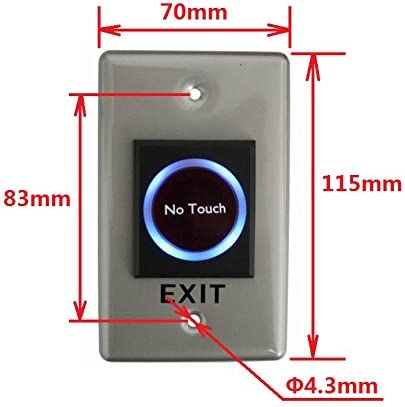

    - Dimensions: L70xW115(mm)
    - Standard Structure: inductive to exit
    - Input : DC 12-24V
    - Working current: 50mA

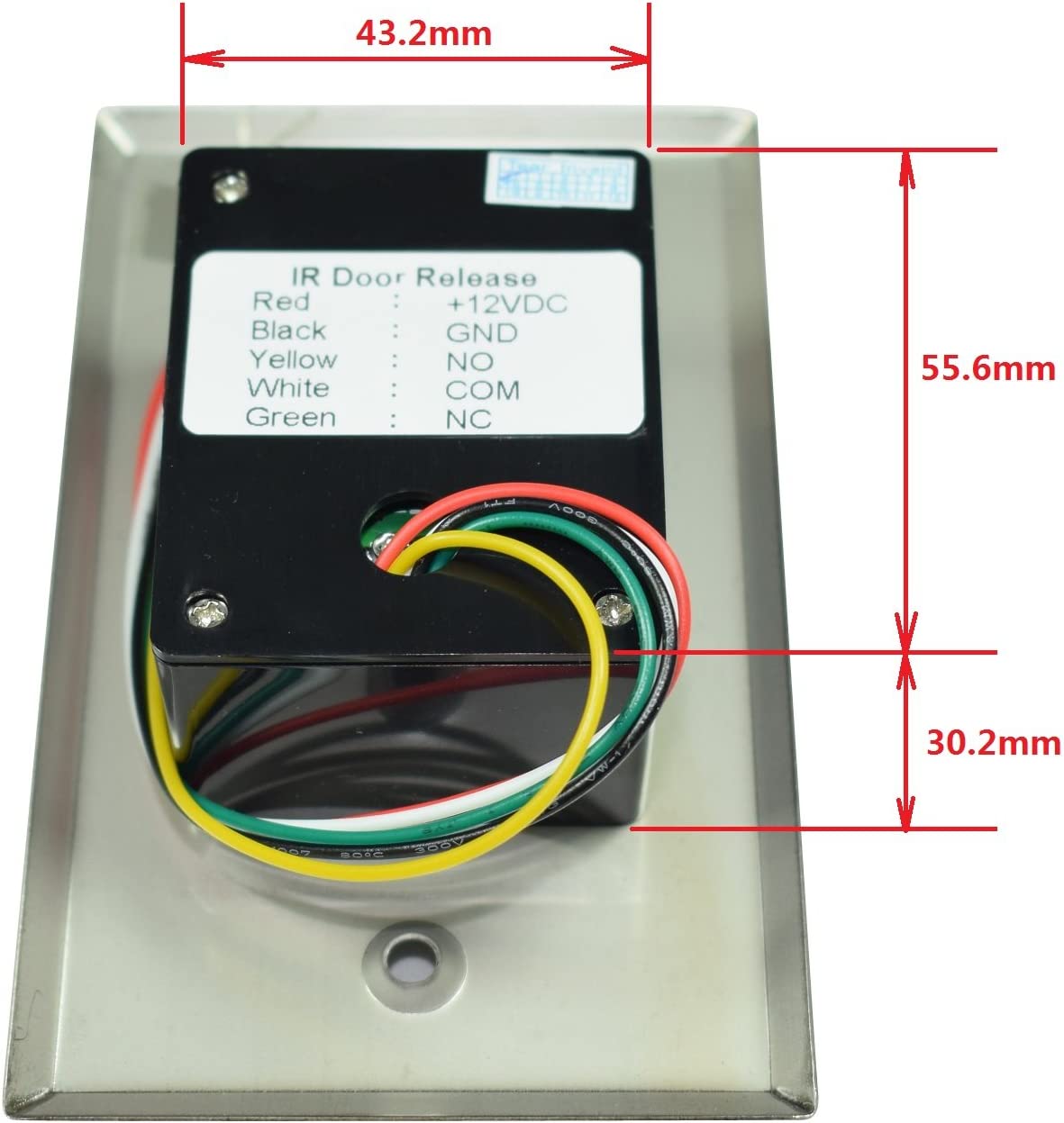

    - Output Contact: NO\NC\COM
    - Mechanical Life: 500000 tested
    - Applicable categories: for 86 bottom box or hollow door installation
    - Operating temp: -20Celsius - +50Celsius
    - Suitable Humidity: 0-95% (relative humidity)
    - Sensing distance: 5-15CM adjustable
    - LED Indicator:1)White LED indicator: Power OFF; 2)Blue LED indicator: Power ON (standby); 3)Green LED indicator: Power ON (sensation)
    - Weight: 0.77kg/0.169lb/2071oz

    Package Include: - 1 x Inductive Exit Release Button Switch - 1 x Installation Kit

    • Dimension: Length 70mm x Width 115mm
    • NO/COM/NC
    • Max. Power: 3A 12-24V DC
